WebAssembly and intelligent data planes

In this lab, you will use the sample application Image Hub. This version of the Image Hub filter has been simplified for your lab. To self-study deeper functionality, try the other version of the Image Hub filter that is available in the Image Hub repo.

Deploy Sample Application

Using Meshery, select Istio from the Management menu.

In the Istio management page:

1. Type default into the namespace field.

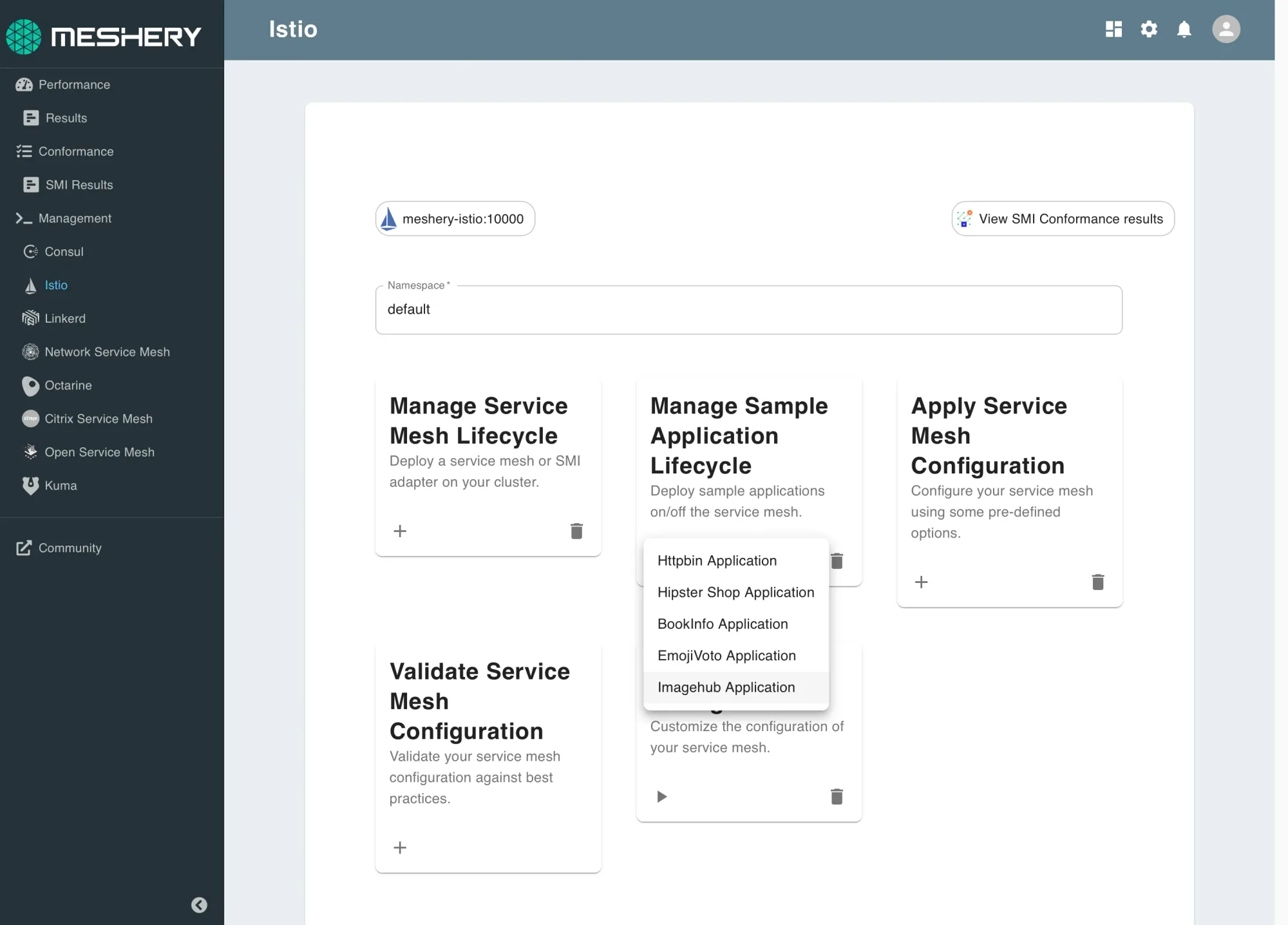

2. Click the (+) icon on the Manage Sample Application Lifecycle card and select Image Hub Application to install the latest version of Image Hub

Load the filter

Next, load the custom Envoy filter. This filter is written in Rust and is compiled against WebAssembly as it's target runtime.

Using Meshery, select Istio from the Management menu.

In the Istio management page:

1. Type default into the namespace field.

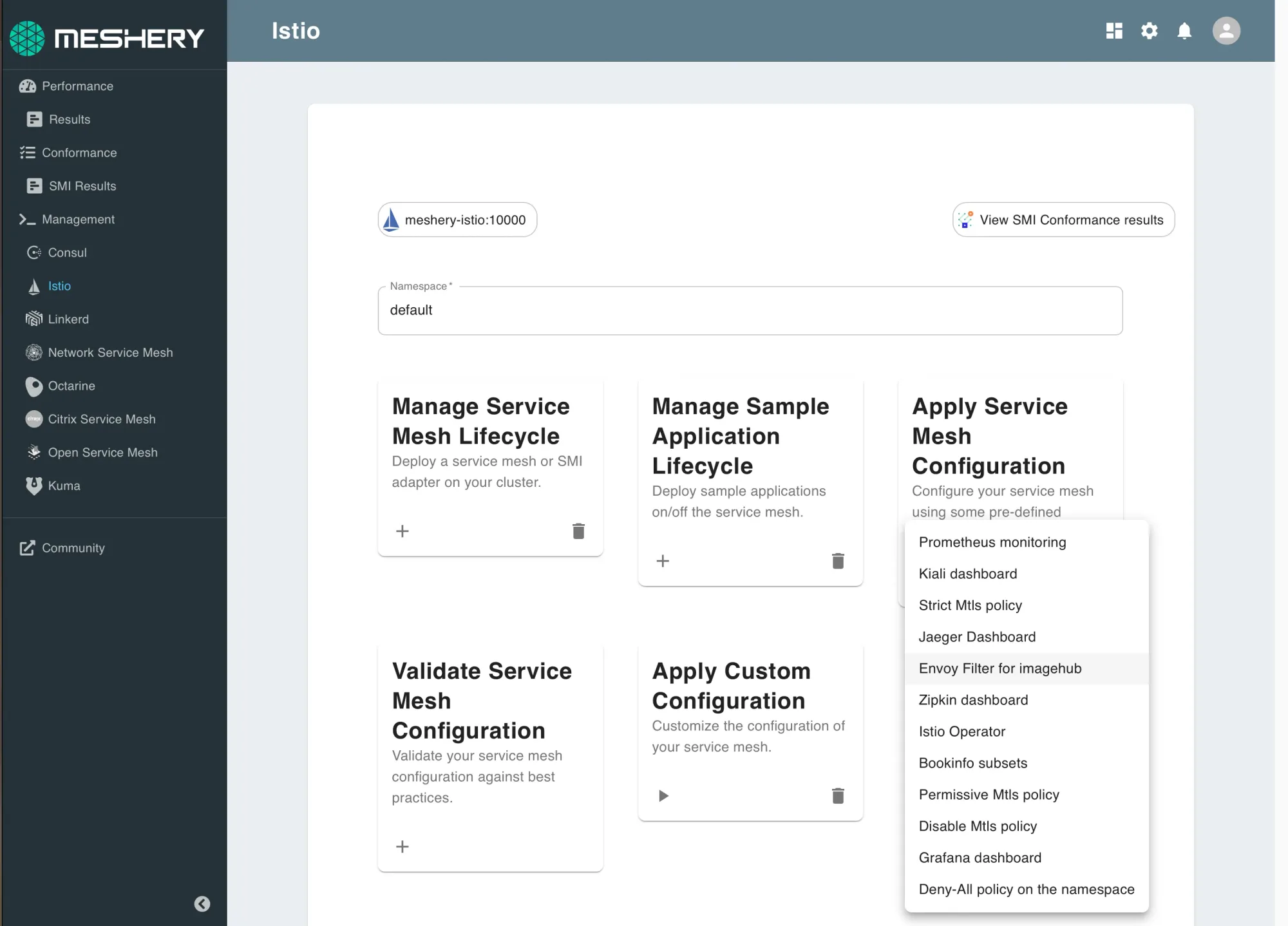

2. Click the (+) icon on the Apply Service Mesh Configuration card and select Envoy Filter for Image Hub to deploy the custom filter.

Send traffic

Analyze behavior

Alternative, manual installation steps are provided for reference below. No need to execute these if you have performed the steps above.

Manually deploy the Image Hub filter.

Copy
1apiVersion: networking.istio.io/v1alpha3
2kind: EnvoyFilter
3metadata:
4  name: custom-filter
5spec:
6  configPatches:
7    - applyTo: HTTP_FILTER
8      match:
9        context: SIDECAR_OUTBOUND # will match outbound listeners in all sidecars
10        listener:
11          portNumber: 9080
12          filterChain:
13            name: envoy.http_connection_manager
14            filter:
15              name: "envoy.tcp_proxy"
16      patch:
17        operation: INSERT_BEFORE
18        value:
19          # This is the full filter config including the name and config or typed_config section.
20          name: "envoy.filters.http.wasm"
21          config:
22            config:
23              name: custom-filter
24              rootId: my_root_id
25              vmConfig:
26                code:
27                  local:
28                    filename: /var/lib/imagehub/filter.wasm
